Part Number: WP24-OMX-IP67MPO-IP67MPO

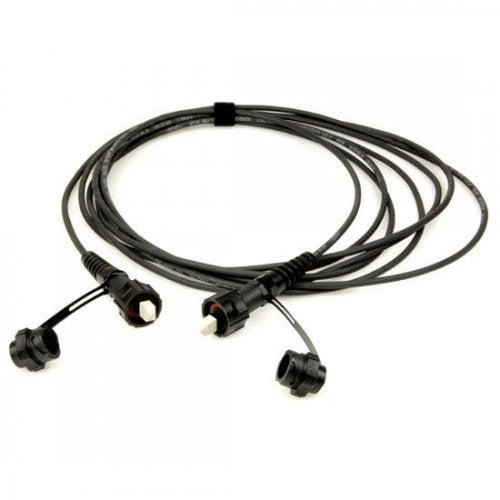

24 Fibers MPO-24 Waterproof Fiber Optic Patch Cable, IP67 MPO to IP67 MPO, Multimode, 24 Fibers OM3/OM4
Waterproof fiber optic patch cables are designed to fit for outdoor applications. The strong PU jacket and armored structure can resist high temperature and suit to use in harsh environment. The cable can provide 1 gigabit data transfer speeds in high bandwidth application and up to 5 times faster than standard 9/125um fiber patch cable. What's more, it's IP67 MPO cable connectors have an extremely rugged, protective rubber coating with integral anti-kink strain-relief boot and a rubber-coated, metal, latching cap, attached by a steel lanyard. When mated or capped, the connection is environmentally sealed up to IP65. It is ideal for using in a variety of applications, including fiber to the antenna (FTTA) and fiber to the home (FTTH).
F-tone provides MPO male (with locating pins) suitable for mounting from the rear in the MPO panel mount connector, and either a 12-core or 24-core fiber to an MPO plug (with locating pins) or socket (without locating pins) 12-core or 24-core connector with mating housing, or to a breakout or fan-out terminated with individual LC, SC, ST or FC connectors. Any customized requirement, please fell free to inform us.
| Product Type | Waterproof Cable | Fiber Type | Multimode OM3 |
|---|---|---|---|
| Connector | IP67 MPO | Fiber Count | 12 |
| Trunk Diameter | 4.0mm/5.0mm | Branch Diameter | 3.0mm |
| Insertion Loss | 0.20dB | Return Loss | 50dB |
| Storage Temperature | -55C ~85C | Operating Temperature | -40C ~70C |
International Protection (IP) Rating
Features
The Application of Waterproof Fiber Optic Patch Cable
IP67 MPO Connectors: socket & plug
There are two types of IP67MPO waterproof connector: IP67MPO plug (with locating pins) and IP67MPO Socket (without locating pins), the plug of one cable and the socket of the other cable can be connected to extend the cable length.
IP67 MPO Component Details
In F-tone, IP67MPO cable connector is the MPO connector whose optical channels are based on the convention with twelve or twenty-four singlemode APC. The aluminum frame has a spring-loaded push-pull locking mechanism and possesses the excellent cable retention because of an aramid yarn within the cable. When there is no connection by the automatically operated sealing-cover, both chassis and connector can protect against dirt and dust. In addition to the automatic sealing shutters, rubber outer sheath and steel, the automatic protective cap is fitted for using when unconnected. When connected or capped, the sealing connection environment amounts to IP67.
Waterproof Optic Patch Cable Performance
| Fiber Type | Singlemode | Multimode |
|---|---|---|
| Insertion Loss | 0.20dB | 0.30dB |
| Return Loss | 50dB | 35dB |
| Storage Temperature | -55C ~85C | -55C ~85C |
| Operating Temperature | -40C ~70C | -40C ~70C |
| Repetition Test(Additional Loss) | 0.1dB | 0.1dB |
| Repetition Test(Return Loss Variability) | <5dB | <5dB |
| Temperature Stability(Additional Loss) | 0.2dB | 0.2dB |
| Temperature Stability(Return Loss Variability) | <5dB | <5dB |
| Bump Resistance | 4000 bumps @ 40g acceleration | 4000 bumps @ 40g acceleration |
| Tensile Strength | Tensile of 1500N-cable dependent | Tensile of 1500N-cable dependent |
| Free Fall Resistance | 500 falls onto concrete from 1.2M height | 500 falls onto concrete from 1.2M height |
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
