Part Number: WTF-Xx

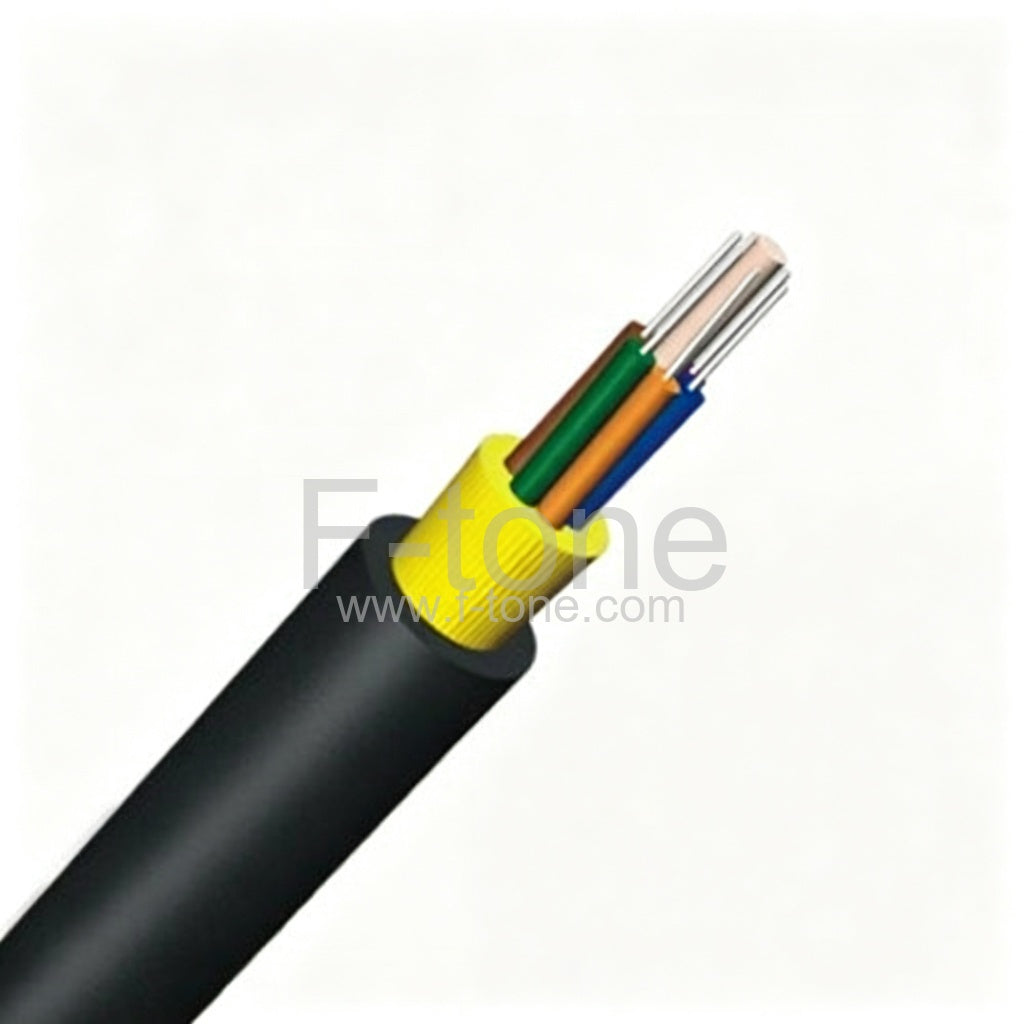

Single-Armored Field Tactical Fiber Optic Cable
Single-armored tactical optical cable with the characteristics of strong tension stress, strong compressive resistance, high flexibility, bending resistance, used for military tactical field, communication between radars or oil field, mining work place.
It has the compact all dielectric structure, for easy installation and repeatable usage. SUS spring tube combined with the braiding to strength the cable, and ensures high mechanical and transmission performance. Flame retardant PU guarantees structure stability and features of crush-resistant, rubbing-resistant, oil-resistant and flame retardant.
Cable Structure
- High intensity optical fiber coating with compound structure guarantees cable's stability and durability.
- The PU jacket is flame retardant.
- Kevlar make cable have excellent tensile strength.
- All all dielectric structure, light weight.
- Good mechanical and environmental characteristics.
- Military communication system
- Communication between radars or oil field,mining work place
- Excellent for use in deployment/retrieval applications
Package
Package 2: usually for outdoor cable, heavy weight cables
Usually for each roll, the cable length is 2km, but we could provide customized package for different cable lengths.
Mark
Usually we only attach Test Report on the out package of the cable, but we could also mark as your requirements, such as:
1. Company Name
2. Cross /Net weight
3. Drum No: XX
4. Cable Length : XX
Cable production throughout the chart
| Cable Count | Cable Diameter | Cable Net Weight |
minimum tensile strength (N) |
minimum allowable Crush Load (N/100mm) |
Minimum Bending Radius (MM) |
Storage Temperature |
|||
| （mm) | （Kg/km) | Short term | Long term | short term | long term | Dynamic | Static | （℃） | |
| 2 | 4.0 | 35 | 1200 | 1500 | 3000 | 4000 | 80D | 40D | -40～80 |
| 4 | 4.0 | 35 | 1200 | 1500 | 3000 | 4000 | 80D | 40D | -40～80 |
| 6 | 5.0 | 40 | 1200 | 1500 | 3000 | 4000 | 100D | 50D | -40～80 |
| G.652 | 50/125µm | 62.5/125µm | ||
| Attenuation (+20°C) (dB/km) |
@850nm | ≤3.0 | ≤3.0 | |
| @1300nm | ≤1.0 | ≤1.0 | ||
| @1310nm | ≤0.36 | |||
| @1550nm | ≤0.22 | |||
| Bandwidth (Class A) (MHz·km) | @850nm | ≥600 | ≥200 | |
| @1300nm | ≥1200 | ≥600 | ||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | ||
| Cable Cut-off Wavelength λcc (nm) | ≤1260 |
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
