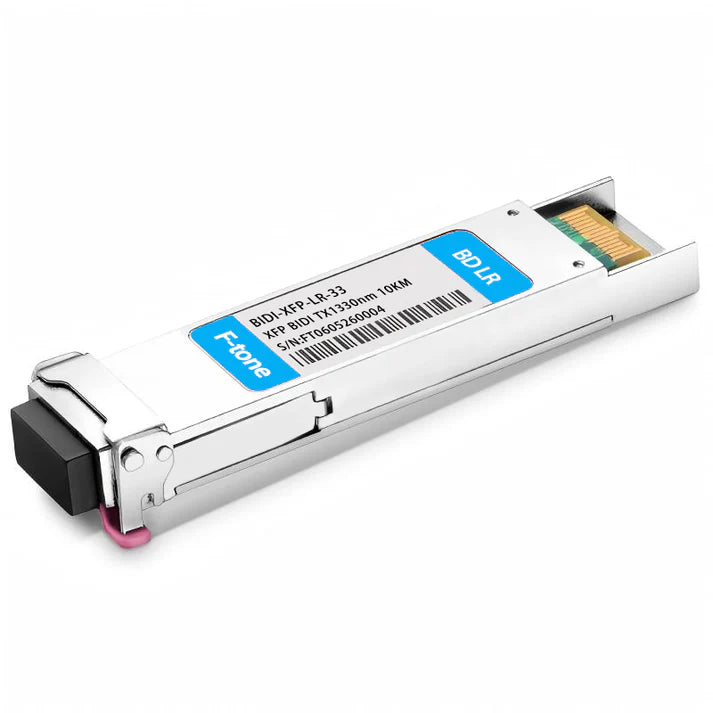

10GBASE BiDi XFP 1330nmTX/1270nmRX BiDi XFP 10km Transceiver

Part Number: XFP-10G-BX321

10GBASE BiDi XFP 1330nmTX/1270nmRX BiDi XFP 10km Transceiver

BXFP-10G32-10

10km XFP transceivers are designed for bi-directional 10G serial optical data communications such as IEEE 802.3ae 10GBASE-BX by using 1330(1270nm) transmitter and 1270(1330) nm receiver. The transceiver consists of two sections: The transmitter section uses a multiple quantum well 1330(1270) nm DFB laser and is a class 1 laser compliant according to International Safety Standard IEC 60825. The receiver section uses an integrated 1270(1330) nm detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.Digital diagnostics functions are available via a 2-wire serial interface, as specified in the XFP MSA.

Key Features

• Supports 9.95Gb/s to 10.5Gb/s data rates
• Power budget 9dB at least
• 1330nm DFB Transmitter/1270nm Receiver
• Average Output Power:-5~0dBm
• Receiver Sensitivity:-14dBm
• Simplex LC Connector
• +3.3V power supply only
• Power dissipation <2W
• Built-in digital diagnostic functions
• Case temperature range:Standard: 0~+70℃
• Complaint with XFP MSA
• Complaint with IEEE 802.3ae 10GBASE-LR/LW
• Complaint with 10GFC 1200-SM-LL-L

Applications

• 10GBASE-LR 10G Ethernet at 10.3125Gbps
• 10GBASE-LW 10G Ethernet at 9.953Gbps
• 1200-SM-LL-L 10G Fiber Channel at 10.51875Gbps

Ordering Information

Packaging

• Antistatic bag
• Packed on pallets in a box(Default Customer Options)
• Specific Labels as Request
• Seperate white Box for each transceiver

OEM and ODM

Combining our extensive design and engineering capability in optical transceiver industry, with our competitive advantages from integrated manufacturing capability, internal supply chain, and cost competitive and scalable operation infrastructure, F-tone provides OEM, ODM, and contract manufacturing service to world leading customers with our manufacturing facilities in China.We are also mainly engaged in providing complete sets of optoelectronic device solutions to gain more brand extensions and influence for F-tone in the world.

• OEM/ODM order is available
• We can supply BXFP-10G32-10 according to your requirements, and design BXFP-10G32-10 label and packaging for your company. We welcome any inquiry for customized BIDI XFP optical transceiver.

Order Procedure

Please contact us with any special requirements you may have, we can help you create a custom solution to meet almost any application. Our engineer will review the project and provide a quotation within 1-2 business days.
a. Email ([email protected]) us a rough sketch to a detailed drawing.
b. Our engineer will review the project and provide a quotation within 24 hours.
c. We can arrange production as low as 1 piece and as high as 1,000 pieces in 1~4 business days once an order is placed.

Shipment

International Express: Fedex, DHL, UPS, TNT and EMS.If you have another preferred carrier, please notify us in advance.
FedEx Overnight: It will take 1-3 business days (weekends and holidays excepted) for delivery.
DHL: It will take 2-4 business days (weekends and holidays excepted) for delivery. For Spain, Italy, Brazil and some other countries, items will take longer time to arrive due to customs clearance period.

Save Cost By Buying BIDI XFP From Original Manufacturer F-tone Directly.

F-tone is an professional manufacturer & supplier of BIDI XFP transceivers. All of our BIDI XFP transceivers are tested in-house prior to shipping to guarantee that they will arrive in perfect physical and working condition. We guarantee BIDI XFP transceivers to work in your system and all of our BIDI XFP transceivers come with a lifetime advance replacement warranty. If you have questions about BIDI XFP optics, please feel free to contact us at [email protected]

This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
