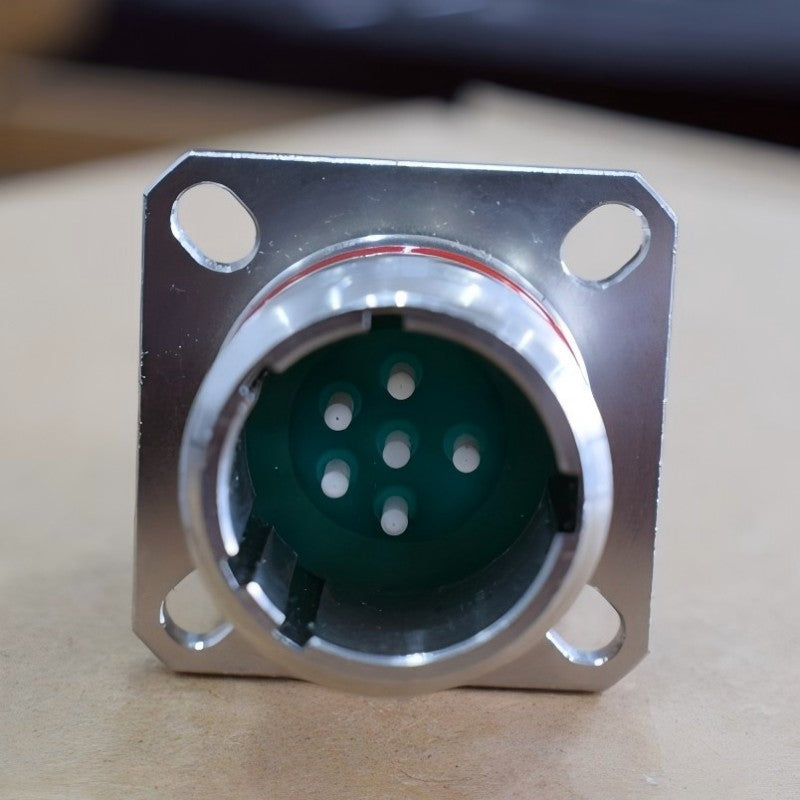

ZLC underwater Tactical connector

ZLC underwater Tactical connector

View full details

ZLC underwater Tactical connector

ZLC underwater tactical connector can working under pressure 5Mpa, low connection loss, high reliability, rugged, resistant to harsh environment.
ZLC and tactical cables are available in almost any length and are custom terminated to user specifications.
Application
● Maine equipment communication.
● The airbome equipment.
● The acid and alkali, hydroelectric acid, moisture andharsh environment.
● The military communication and outdooenironment communication.
Features
● 4,6 fiber connection or Hybrid 2F2P or 4F2P.
● Stainless steel 316L material, high contact density,electromagnetic shielding
● Five-Key positioning with blind insertion anderror-proofinsertion and anti-vibration function
● Three-threaded thread for quick connection withanti-oose structure
● Threaded connection for quick conne ction and easyto use
● Precision docking with ceramic pins and five -keygroove, mutiple tail variants available
Vith "three-proof perfomance, anti-rat bite,anti-electromagnetic interference, can adapt to harshenvironments such as ships and under deep water.
Specifications
Connection Drawing
ZLC Assembly Ordering Info
[Ordering info example]
（1）ZLC06P-ZLC06P-L20m-SM6.0
Both end is ZLC06P Plug, length is 20m 6.0mm 6core Tactical Armored Optical Cable. [Ordering info example]
（1）ZLC04P-4ST-L1/0.3m-SM3.0
End A is ZLC04 Plug，End B is 4ST connector, length is 1/0.3m, SM armored tactical branch cable, O.D. is 3.0mm
[Ordering info example]
（1）ZLC04S-2ST-L0.5m-SM3.0
End A is ZLC04S socket，End B is 4ST connector, length is 0.5m, SM armored tactical branch cable, O.D. is 3.0mm


Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
